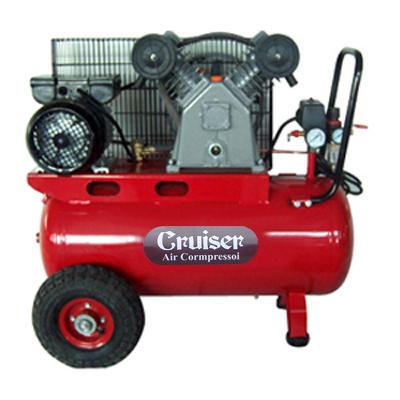

Belt Driven Air Compressor VD-0.25EU

Add To Basket

Send Inquiry

Company Profile Tel:0086-576-86330886; Cell Phone: 0086-13586276000 Tel:0086-576-86330886; Cell Phone: 0086-13586276000

Product Description:

  • This air compressor is JAPAN stylish  compressor which can be used in samll factory or assembly line
  • Square shape casting iron pump with durable designment
  • Two 8" air inflating wheels
  • Fit water oil filter and regulator(this is up to customer requirements,if need,we fit)
  • Insulation F low noise high efficiency motor
  • Portable designment for outdoor taken
  • We can produce any capacity tanks such as 100lt ,200lt to follow customers.
  • two metal air guage ,1x1/4'' air release cock , 0-8 bar air pressure regulator
  • ce approved presssure switch and safty valve
  • oil water filter make outlet air clean and dry
  • two piston head cast iron pump
  • 200# steel cylinder , world famous brand pistons
  • 2x8'' air inflating wheels
  • each tanks with 1x1/2'' check holes

Model v/hz lt L/min Mpa/Psi hp/kw R.M.P kg M3
VD-0.17SEU 100-240/50 70 206 0.8/115 2.0/1.5 2850 60 0.3
  100-240/60 70 206 0.8/115 2.0/1.5 3450 60 0.3
VD-0.25SEU 100-240/50 100 335 0.8/115 3.0/2.2 2850 75 0.4
  100-240/60 100 335 0.8/115 3.0/2.2 3450 75 0.4
